Wind Velocity 13 m/s  Rainfall 75 mm/hr

uAMCA500-L standard test

uFree area >50%

uAir flow 2.8 m³/s,Pressure drop <30 Pa

Air flow 1.5 m³/s,Rainproof effectiveness>99.2% Class A

uFinish: PVDF, Powder, Anodised

uWarranty: AAMA2603, AAMA2604, AAMA2605

Accessories:

uBird and Insect screen

uFlange

uHinge

uMuffler

uFilters

uSandwich mineral wool board

uAluminum or Steel

   Certified Ratings:

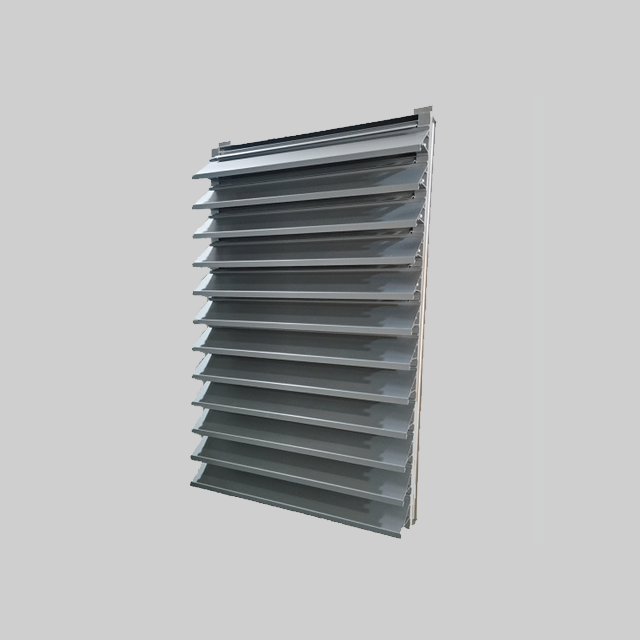

   Vanman Industrial(Shanghai) Co.Ltd certifies that model RL80 shown here on is licensed to bear the AMCA seal.

   The ratings shown are based on test and procedures performed in accordance with AMCA Publication 511 and

   comply with the requirements of the AMCA Certified Ratings Program. The AMCA Certified Ratings Seal applies to

   air performance ratings, water penetration ratings, and wind driven rain ratings only.
